Step 1

The first step is to take apart the pallet. There are a number of ways to do this. The first is to use a crowbar to pry the boards apart. We talked about this technique in our last pallet project. Today we’re going to talk about a different method: Using a reciprocating saw (also called a sawzall) to cut through the nails holding the pallet together. This takes a little more confidence in using power tools, but it does make it really easy to keep the boards in one piece. Our friend Jon helped us prep for this pallet project by showing us the technique and cutting the pallet board for our project. Thanks, Jon!

diy pallet sign

Get your pallet and hold it vertically. You may need to grab a friend to help you hold the pallet in place. Next get your sawzall and attach a 5" or larger blade. You can use a metal or universal blade. Wedge the blade in between the pallet slats and the 2x4 supports and cut straight down. Do this on each of the four areas the cross beams are attached.

For this project we used a double pallet that measured to about five and half feet long. This gave us the right proportions to use 13 boards: one for each of the stripes on the flag. The official ratio dimensions of the American flag are 1:1.9. Ours turned out more along the lines of 1:1.5, but the ratio is close enough to distort the look of the end product.

Step 2

fourth of july pallet sign

Step 3

Lay out a large plastic tarp in preparation for painting. Before you start, be aware that dealing with old pallet wood means that your results will vary. It’s fun, because you never quite know what you’ll get in the end. So keep your mind open, and be happy with your one-of-a-kind piece.

Shake up the can of primer and following the steps on the label, apply the primer to the boards. An easy way to get an even coat is to spray each board individually, using short sweeping motions across the width of the board and moving down the length of the board. We had to use two cans to get good coverage (though the wind may have played a hand in this). Remember that it’s better to apply several light coats to build up that coverage than one thick coat. Allow the primer to dry for the allotted time—most manufacturers suggest you apply your additional coats of paint within an hour.

Since we’re going for an older, weathered look we picked an ivory color for the stripes and stars opposed to a bright white. We’re using this as a base for even the red and blue to create the effect we want. If you have any interest in creating a more weathered look, you can do some sanding later. You can get a three-dimensional look with the topcoat color, the white underneath, and then the bare wood. Allow the paint to dry.

painting pallet for sign

Step 4

Once you allow the ivory or white paint to dry, lay out your boards again. At this point compare the different ways the boards accepted the paint. Because they’re rough boards, some will likely turn out darker and others lighter. This isn’t a problem. Just make sure that you spread them out so that the darker and lighter are intermingled. This will make it less noticeable and, once again, add to the character of the final product. Pick which boards you want to paint red; this is a great chance to recoat the boards that ended up at either extremes

painting boards for pallet signs


Step 5

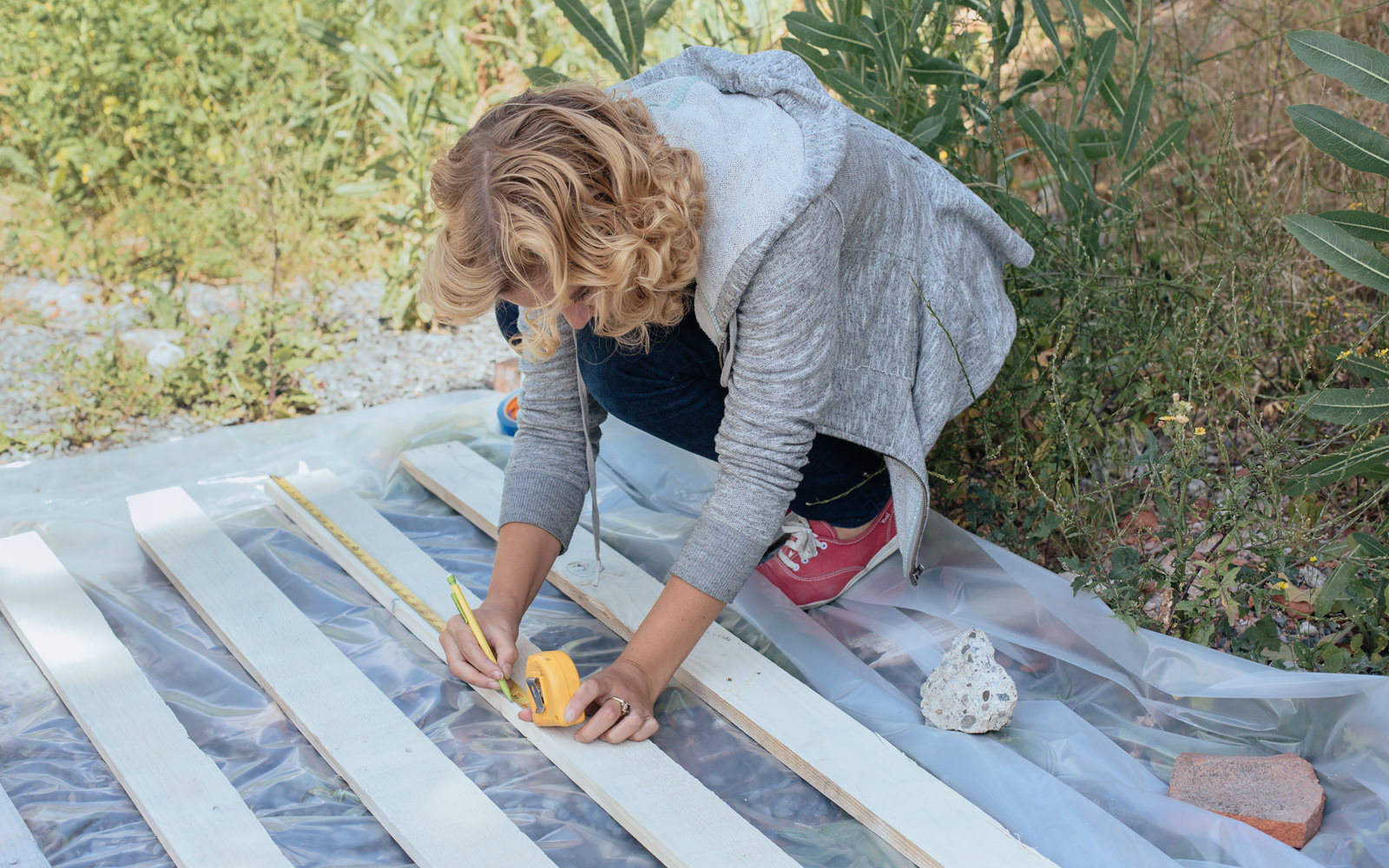

Before you begin with the red stripes, tape off the corner for the blue paint. If you’re using your own template for the stars you’ll need to calculate the size yourself. We made a star template that was 3 ¼” wide. We put a half-inch gap in between each star in the row and we made six rows of eight—each row on its own board. This makes two adjustments to the official US flag. First there are only 48 stars. Thus, this is the design of the flag from 1912 to 1959. Secondly, the stars only take up six rows of stripes, opposed to in the actual flag where they take up seven. We liked the way it looked better when each row of stars was taking up a board and not bridged between two. So you’re welcome to make changes, but the area we taped off was 31 ½” long and six boards wide. We started by taping off the boards that would be painted red, and later added the white boards and made those measurements.

measuring boards for pallet sign

taping pallet sign

Step 6

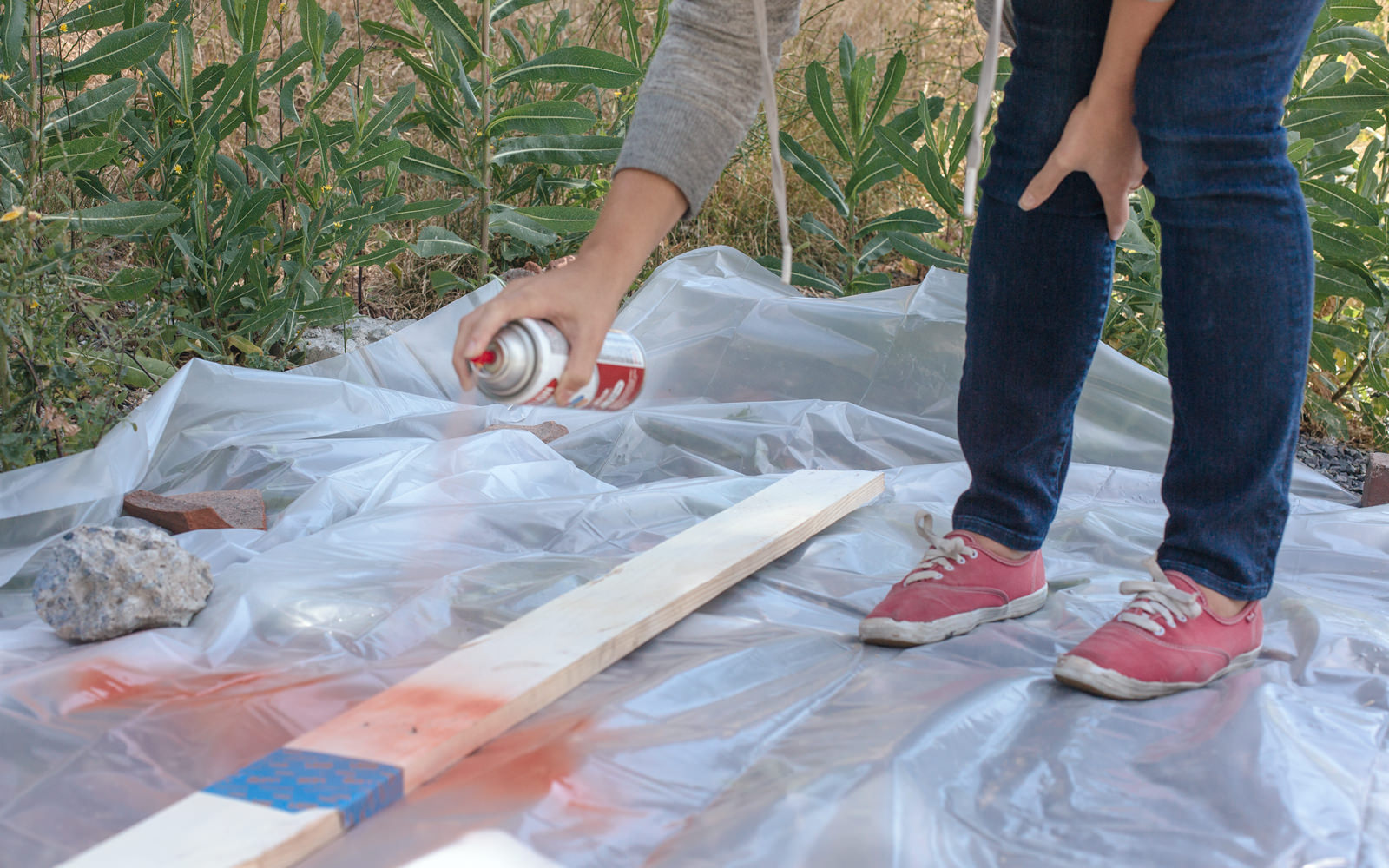

Once the blue is taped off you can apply several light coats of red. You may find that some boards require more coats than others. Adjust to the wood that you’re dealing with and do your best. Allow the paint to dry.

spray paint pallet sign

spray painting pallet sign

Step 7

Bring the white stripes back in place and measure and tape off the area that will be painted blue. but the area we taped off was 31 ½” long and six boards wide.

red white and blue pallet sign

Step 8

Make sure that the red paint has time to dry since we’ll be taping over it to apply the blue paint. Use newspapers or masking paper to cover up the red and white stripes. Don’t forget to shake the can, and apply the blue paint according to the manufacturer's instructions. Allow to dry well.


painting American flag sign

Step 9

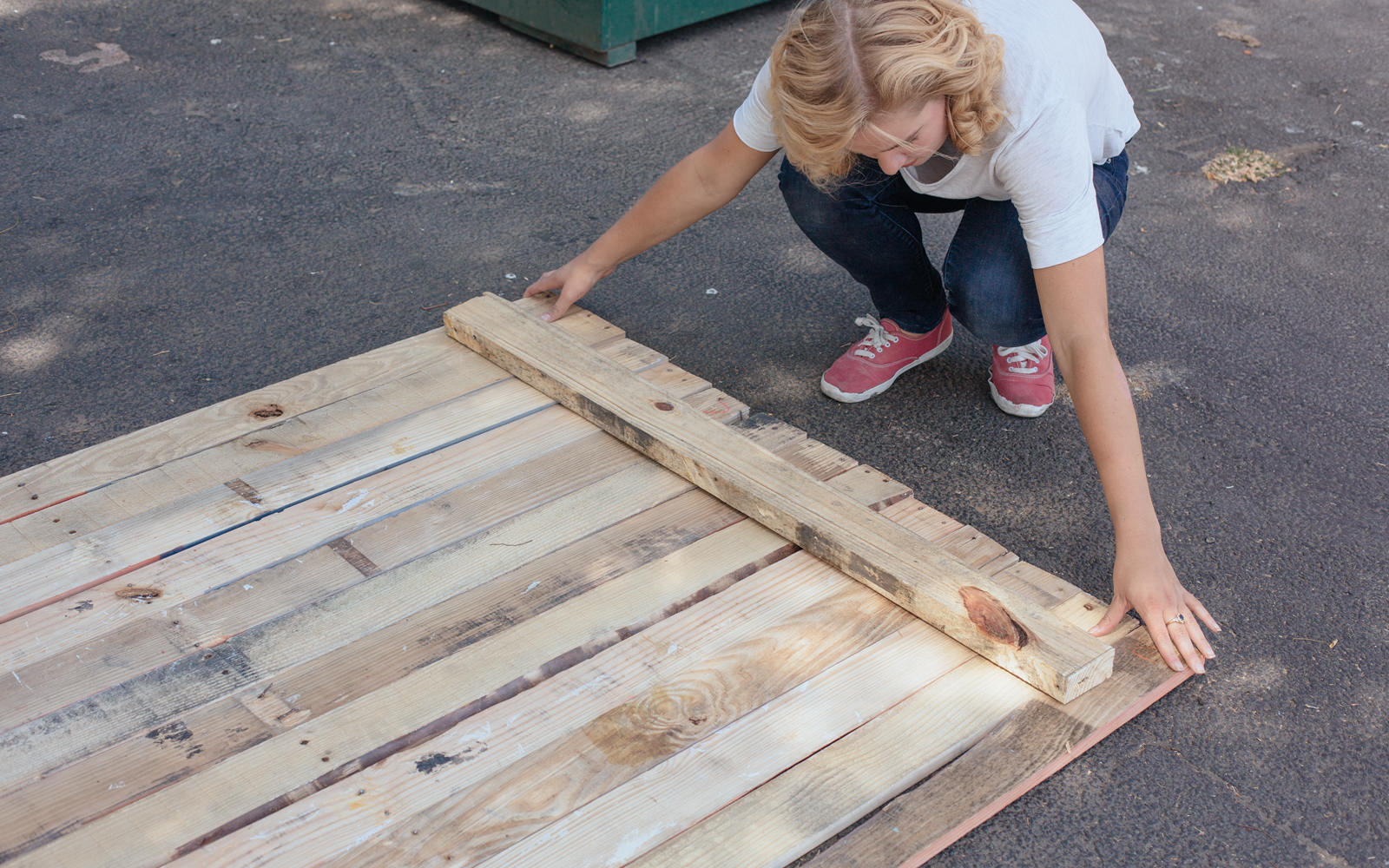

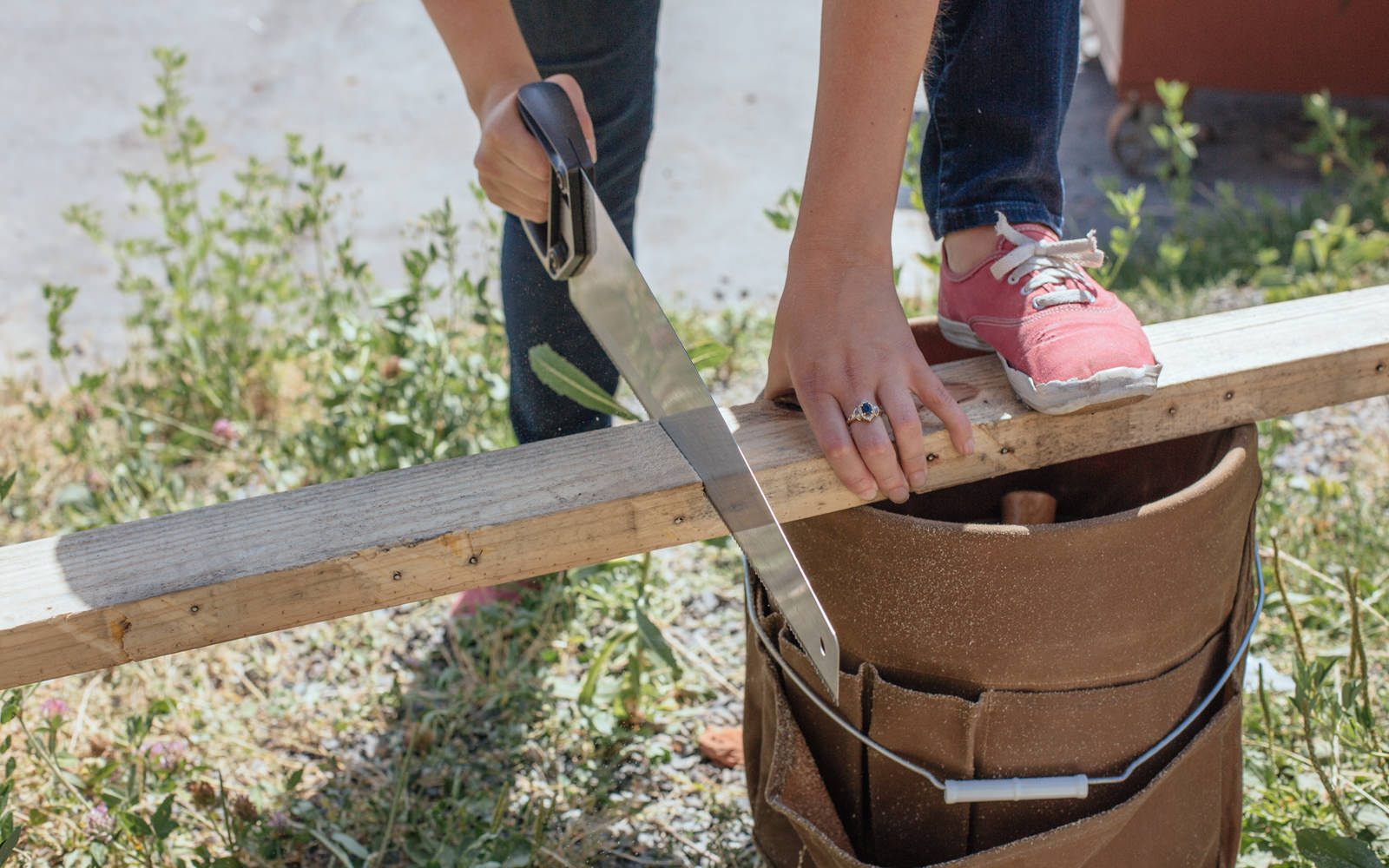

Next it’s time for assembly. You will need two 44 ½” lengths for the supporting beams. You can either cut these out of an eight foot 2x4, or you can use some of the 2x4 pieces from the pallet. Be warned though that these boards are full of nails and will require some strategic cutting and drilling. We used the pallet boards, but for the low cost of a 2x4 it didn’t really seem worth the effort. Measure and cut the 2x4s to the correct length. Turn the pallet boards face down and line up the supports on either end several inches in from the edge. When you lay the boards face down make sure that the blue is on the correct side. This means flipping the boards lengthwise so that the blue is underneath the upper right hand section.

sawing pallet wood

pallet sign

Step 10

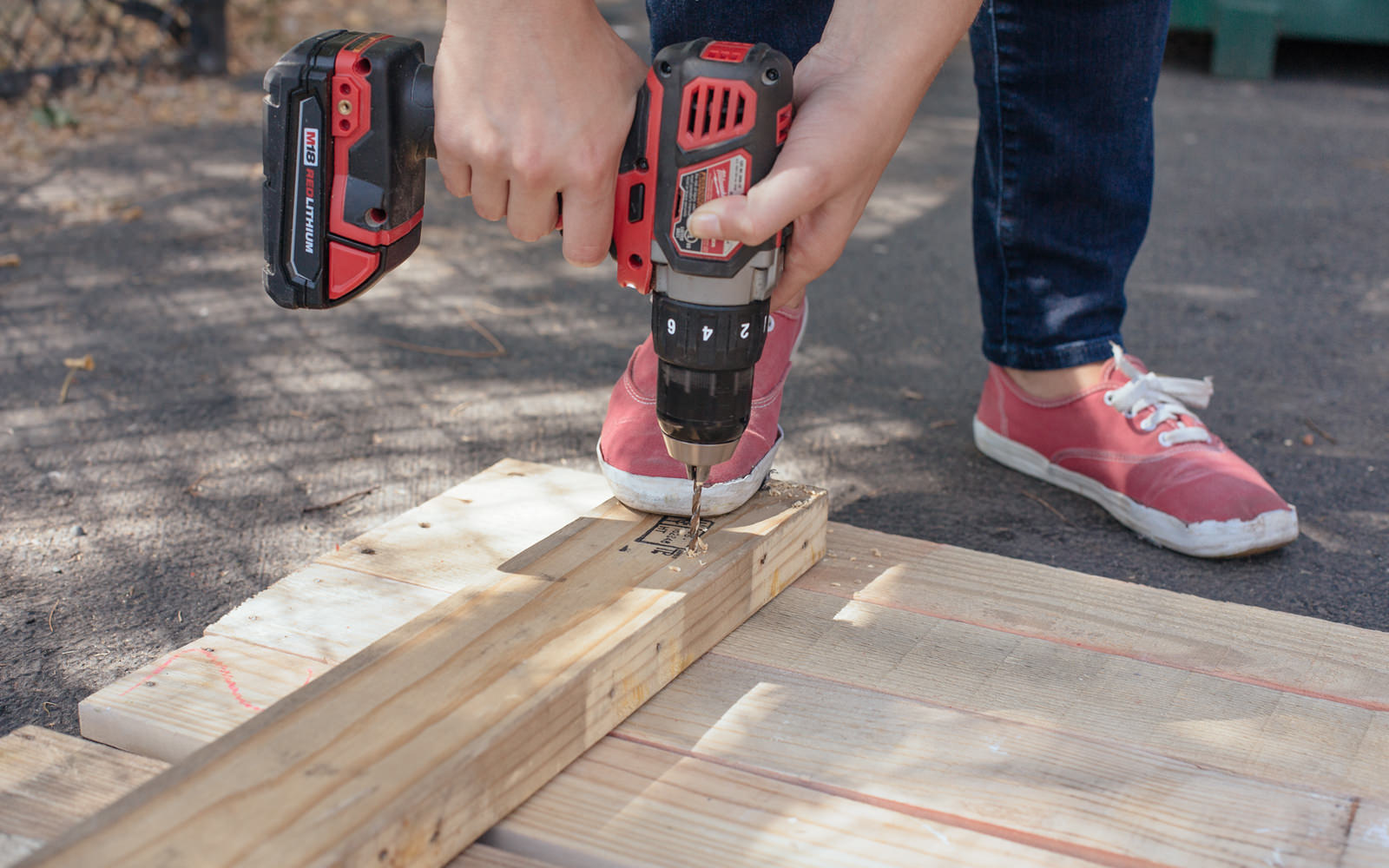

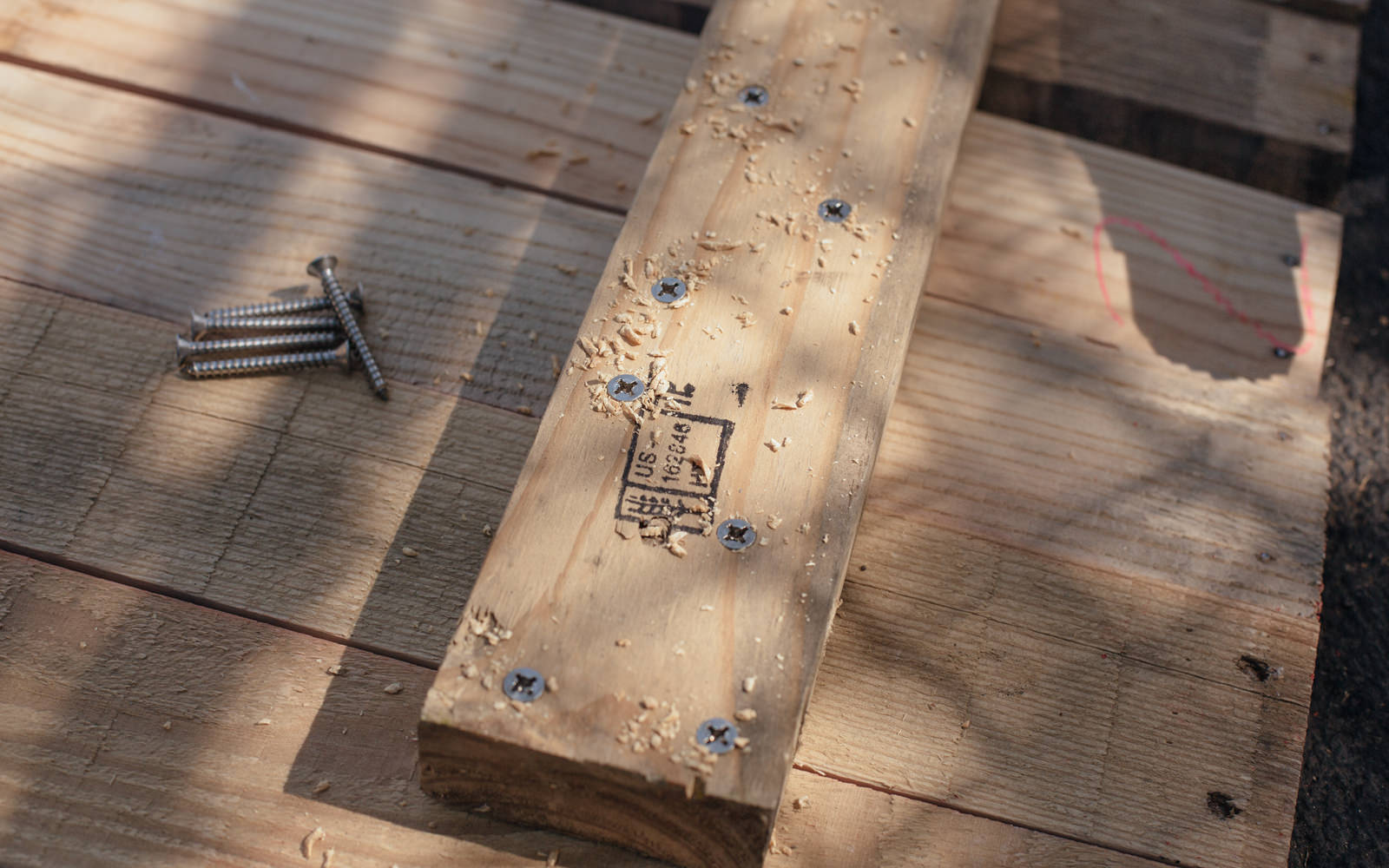

With the supports in place predrill 26 holes into each 2x4 – two holes into each front facing piece. Use a drill bit slightly smaller than the screw and make sure it’s shorter than two inches or tape it off. Apply pressure to the 2x4 for a tight fit with the facing and secure with screws.

For added support and strength you can add a third middle support. This is entirely up to you.

screwing pallet sign

screws for pallet signs

Step 11

The last step is the stars. Use newspapers or masking paper and painter's tape to tape off around the blue section. If you find that painter’s tape doesn’t stick you can use a stronger blue tape. Cut out the stencil and line it up in the upper left hand corner. Shake up a can of ivory spray paint and put on some work gloves. Cover up the surrounding area near the star stencil with paper or newspaper. Use your gloved hand to hold down the stencil. If you can’t hold down all the corners at once, spray the paint away from the lifted corner not towards it. This will help keep a clean line. If you don’t spray too heavily you should be able to move along each row pretty systematically, gently laying paper over the last star without applying pressure.

We found that after a row or two, the glove and stencil adhered to each other. This actually made the process a lot quicker. Close to half way through the stars, the stencil got very goopy and started leaking paint. At this point you have a couple options: you either can cut out a new stencil or you can wipe off the original one and leave it to dry for a few minutes. Either way you’ll probably need to switch out your glove at least once and the surrounding protective paper several times.

template for pallet sign

american flag pallet sign
painting stars on pallet sign
painting stars on wood
spray pain star shape on wood

Step 12

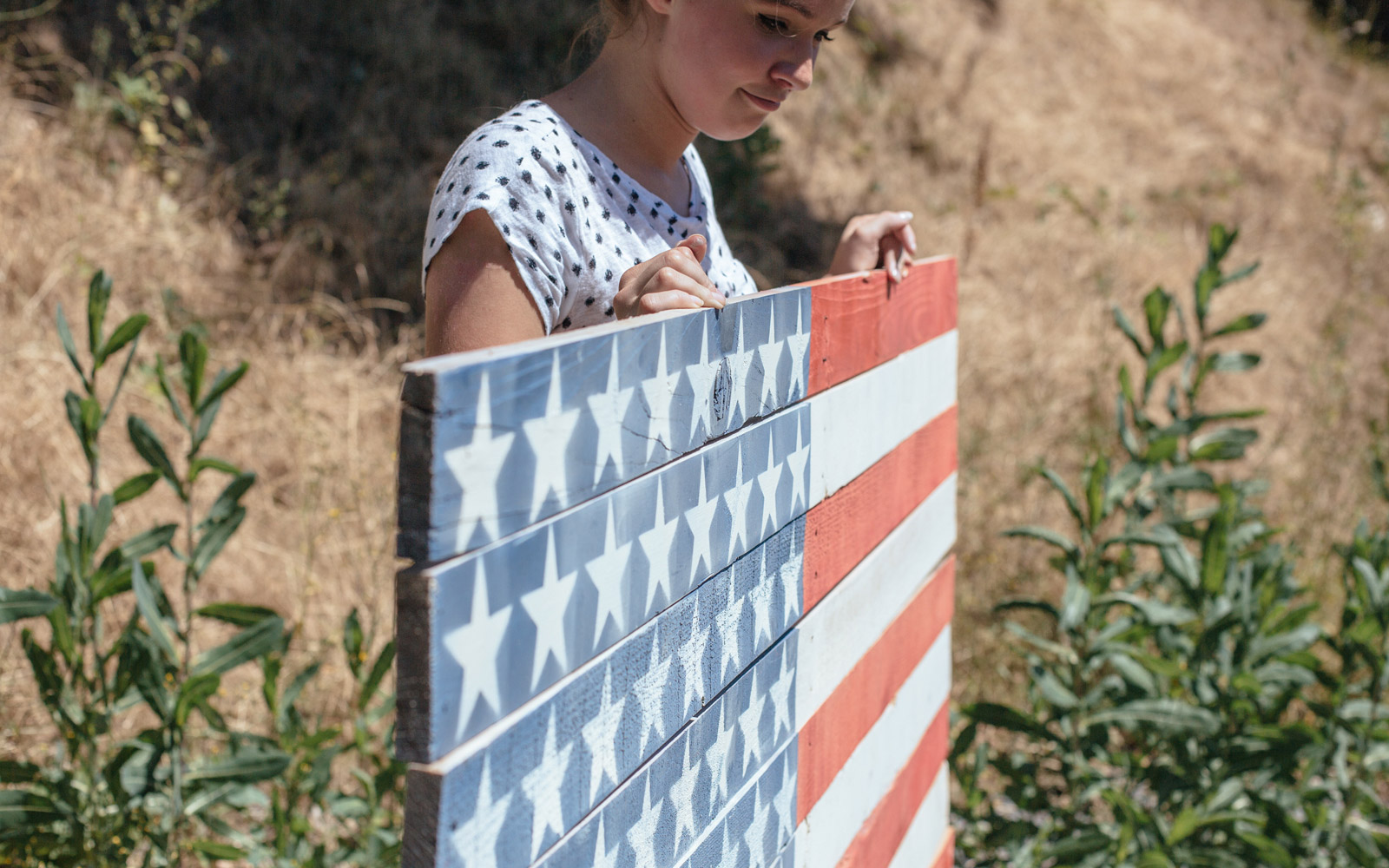

When you’ve painted the last star, wait for it to dry and you’re pretty much done! The last step is optional: Use a clear acrylic spray as a protective coating.

coating for pallet sign

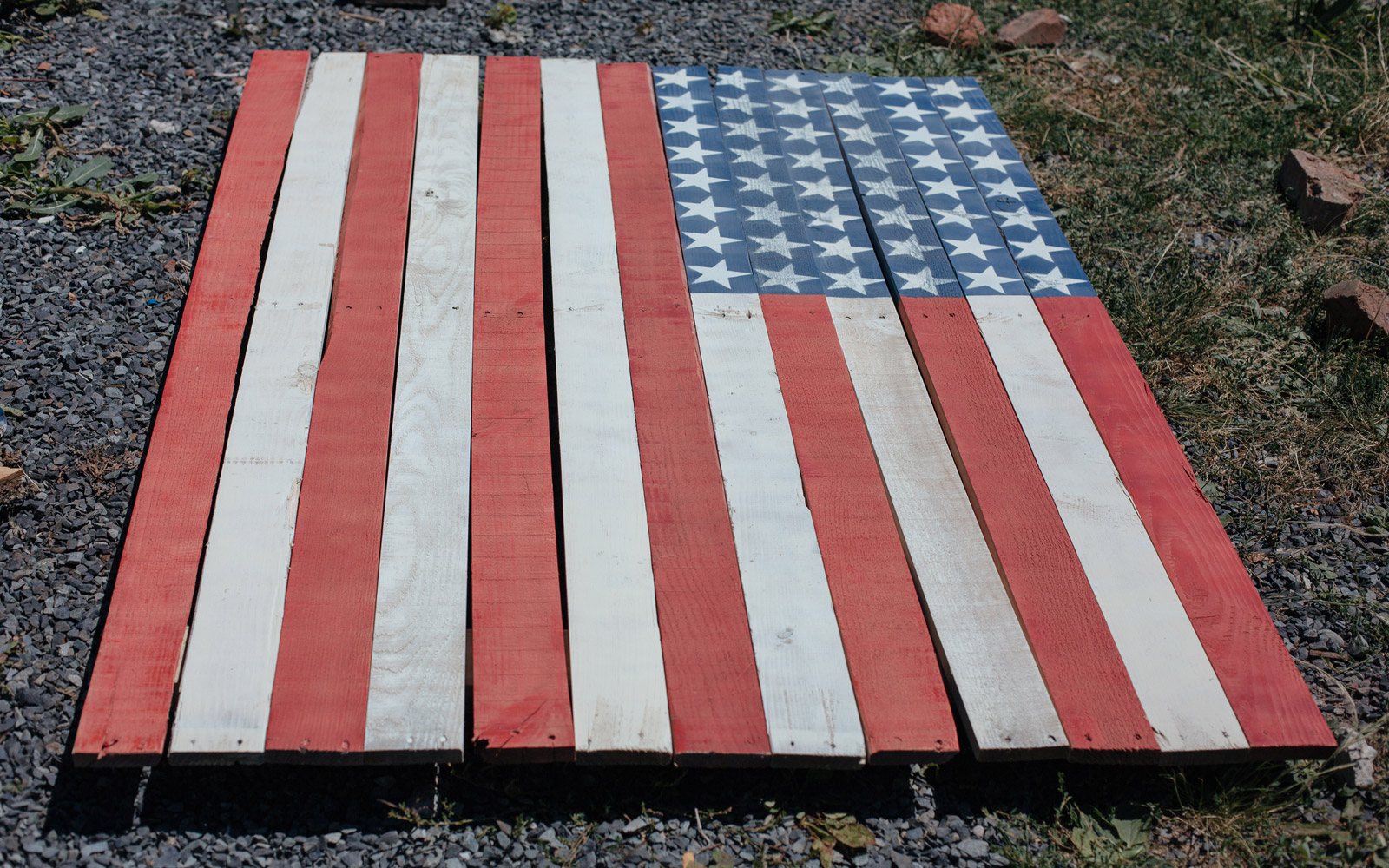

diy american flag pallet signfourth of july pallet

Congratulations on your beautiful creation, and Happy Independence Day!
